    FILTER BAG

    GEEWING® series dust filter bags are the basic products of Farrleey. With more than 20 years of experience in the application of bag filters, our company has a large amount of data support for various working conditions, providing the foundation to develop different types of filtration products that meet different working conditions. Farrleey's GEEWING® series PTFE felt with PTFE membrane bags are widely applied in waste incineration, industrial hazardous waste disposal, medical waste disposal and other fields.


    Industry status and problems (flue gas system)

    After 30 years of development and exploration of waste incineration, the entire technological process, including the major unit equipment and local systems, has reached the foremost level. Among them, the flue gas system process is as follows:

    Waste power generation: In 2017, 70% of the 359 operating waste incineration plants did not disclose monitoring data, especially dust particles (the above data)

    Analysis of the current status of filter bags: PTFE membrane filter bags have become a must for waste incineration and hazardous waste disposal industry for ultra-low emission of dust particles, but there are still a series of problems

    PTFE fibers are uneven
    Backward production equipment
    Strict quality control
    Lack of post-service process

    • NOx removal system

      Semi-dry method:
      Ga (OH) 2 solution
      Dry method:
      hydrated lime powder

    • Dust removal particles

      Bag dust

    • In addition to
      dioxin and odor

      Activated carbon

    • NOx removal system

      SNCR
      Selective
      non-catalytic
      reduction

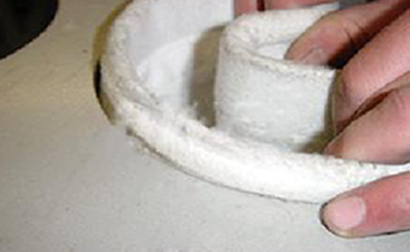

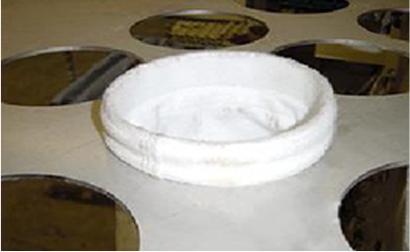

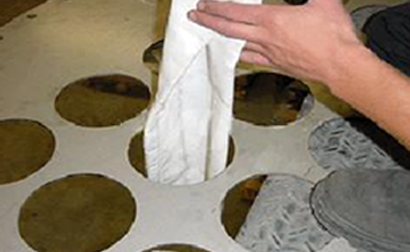

    Correctly install PTFE filter bag

    Correct installation steps

    • 01/08
    • 02/08
    • 03/08
    • 04/08
    • 05/08
    • 06/08
    • 07/08
    • 08/08

    Precautions

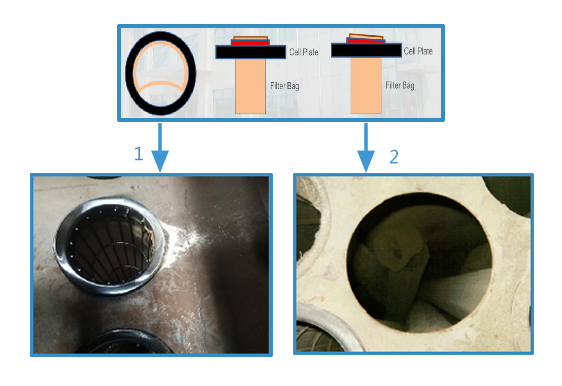

    1. Dust leakage at the mouth of the filter bag
    The head support of the filter bag has not been reset, the naked eye feels that it has been reset, but there is actually a gap;
    2. The filter bag falls
    The misalignment of the bag head makes the filter bag lose the supporting force of the flower plate to the filter bag. During the operation, it is dropped by the pneumatic blow of compressed air;

    Supplementary points

    • Correct the demonstration picture, the PTFE membrane filter bag must use a protective sleeve and the installer must wear soft fabric gloves for installation;
    • The stitches are facing away from the air inlet;
    • Do not use heavy objects or metal objects to strike the head of the filter bag;
    • Set cages must be handled lightly, with a little rotation when placed;
    • After the installation is completed, use the packaging carton to lay the cover to avoid deforming the lead by foot;

    Proper use of PTFE filter bags

    PTFE membrane caused by incomplete combustion of start-up fuel and inadequate pre-spraying;
    Circumvention measures
    Start the furnace and borrow the debugging filter bag;
    Increase the amount of slaked lime during the start-up phase;

    user experience

    N
    e
    w

    • Pre-sale
      Cooperate again
      Technology Exchange
      Project signing
    • On sale
      Flower board measurement
      Production samples
      Mass production
      Transportation and storage
    • After sales
      Customer Reviews
      Regular return visit
      run
      Phosphor powder leak detection
      Installation Instructions

    r
    e
    p
    l
    a
    c
    e

    • Pre-sale
      Cooperate again
      Technology Exchange
      Site survey
      System check
      Project signing
    • On sale
      Flower board measurement
      Production samples
      Mass production
      Transportation and storage
    • After sale
      Customer Reviews
      Regular return visit
      run
      Phosphor powder leak detection
      Installation Instructions
